Vertex FunnelJet Floating Fountain

Fountain Features

• Floating lake fountain designed for large-scale commercial application.

• Available in 2 HP, 3 HP 5 HP, 7.5 HP, and 10 HP.

• Suggested LED Lighting Packages:


• 3 lights for all sizes.


Warranty Coverage

All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

• Display heads: 4-years

• Pumps and motors: 4-years

• LED Lighting: 2-years

• Control Panel: 1-year

Description

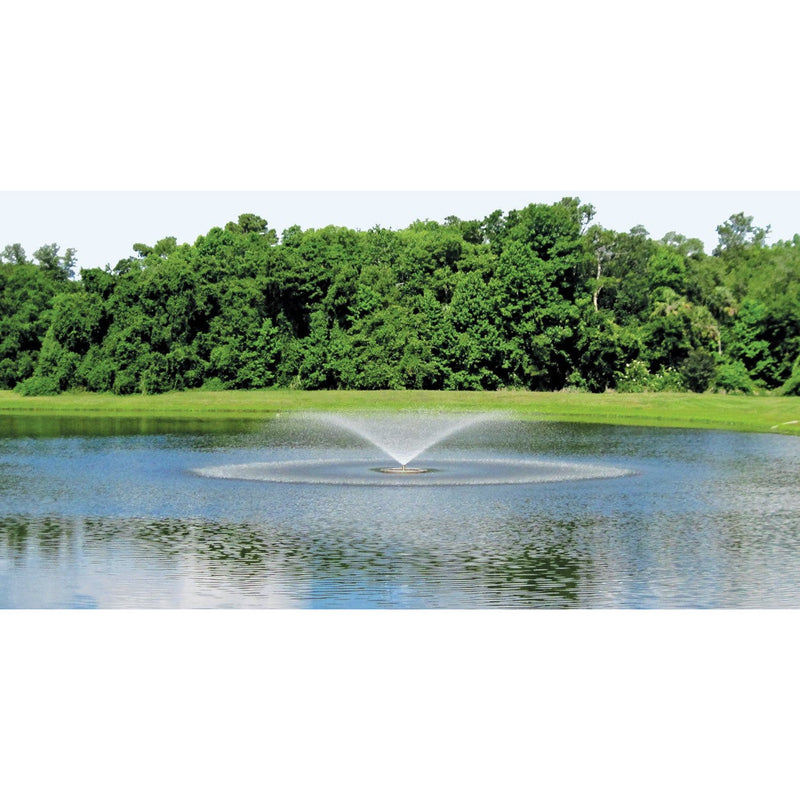

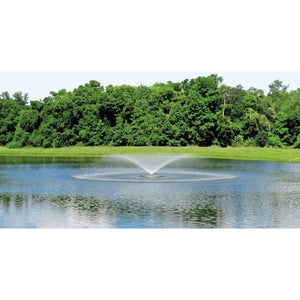

The FunnelJet floating fountain series produces a striking display of sparkling water, creating a wide ring that adds elegance and power to any lake or pond. Designed with a low profile pattern, this fountain series is perfect for those who want a water feature without obstructing the surrounding views.

Constructed with fully waterproof components made of high-quality corrosion-resistant materials, FunnelJet floating lake fountains are dependable and provide exceptional performance for years to come. All FunnelJet fountains are equipped with a UL listed control panel and heavy-duty submersible turbine pump to ensure consistent and reliable operation.

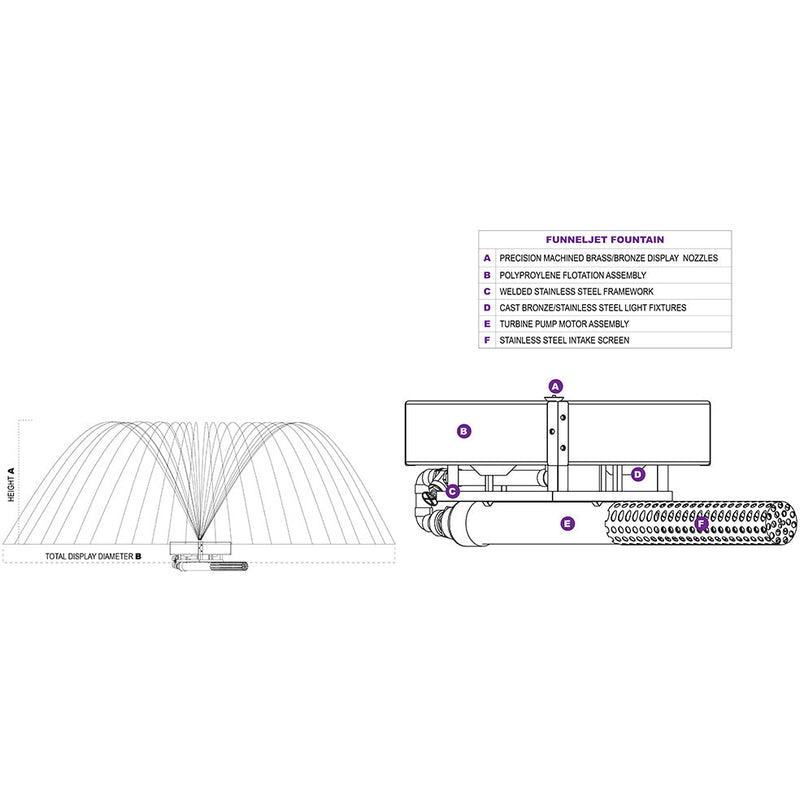

Nozzles

• Precision machined brass/bronze or stainless steel nozzles.

Pumps/Motors

• High performance turbine pump/motor assembly

• Stainless steel construction

• Water cooled: no oils, seals or o-rings to replace

• 4 year warranty

Flotation

• Rotocast polypropylene with UV inhibitors for long life

• Individual leveling compartments for exact adjustments

• 4 year warranty

Control Panel

• UL listed per National Electrical Code

• Weatherproof steel enclosures

Submersible Light Fixtures

• 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel

• Energy efficient LED, 140 lumens

• Stainless steel housing

• 2 year warranty

Cables

(NOT INCLUDED IN LISTED PRICE)

- Call for price on cable

• STW-A rated

• 4 year warranty

Minimum Water Depth

Electrical Specs

Documentation

Vertex FunnelJet Brochure

Vertex FunnelJet System Specifications

Vertex Fountain Owners Manual
