Average Hourly Cost
|
Pump Size |
Avg. Cost/hr |
| 1 HP 115V | $0.12 |
| 1 HP 230V | $0.13 |
| 1.5 HP 230V | $0.20 |
| 2 HP 230V | $0.25 |
| 3 HP 230V | $0.33 |
*Average cost is calculated using the U.S. national average cost per killowatthour. Rates will vary regionally.
Amps & Watts
|
Pump Size |
Amps |
Watts |
| 1 HP 115V | 11.5 | 1090 |
| 1 HP 230V | 8.2 | 1210 |
| 1.5 HP 230V | 10.6 | 1770 |
| 2 HP 230V | 12.6 | 2280 |
| 3 HP 230V | 14 | 3000 |
Power Cable Maximum Distances
| Pump Size | #12 | #10 | #8 |
| 1 HP 115V | 100' | 150’ | 225' |
| 1 HP 230V | 400' | 630' | 990' |
| 1.5 HP 230V | 310' | 480' | 770' |
| 2 HP 230V | 250' | 390' | 620' |
| 3 HP 230V | 190' | 300' | 470' |
Warranty
| Motor & Pump | 5 Years |
| Non-Electric Fountain Components | 1 Year |
| Power Cable | 1 Year |
| Light Fixtures & Brackets | 2 Years |
| Light Transformer | 1 Year |
| Fountain Timers | 1 Year |
All standard Scott Aerator Company products are warranted to the original owner for five years against motor defects in materials or workmanship, no questions asked. All other product components are warranted for one year from date of purchase. Scott Aerator Company will replace failed parts under warranty when the defective unit is returned to the factory, shipping prepaid by customer, if factory inspection establishes that the part was defective. The unit must be returned to the factory prior to shipment of replacement parts. All parts replaced under this warranty if requested will be returned with shipping prepaid. Neither Scott Aerator Company nor ProtoPond will not be liable for consequential damage nor for any costs associated with removal or attempts to repair components in the field.

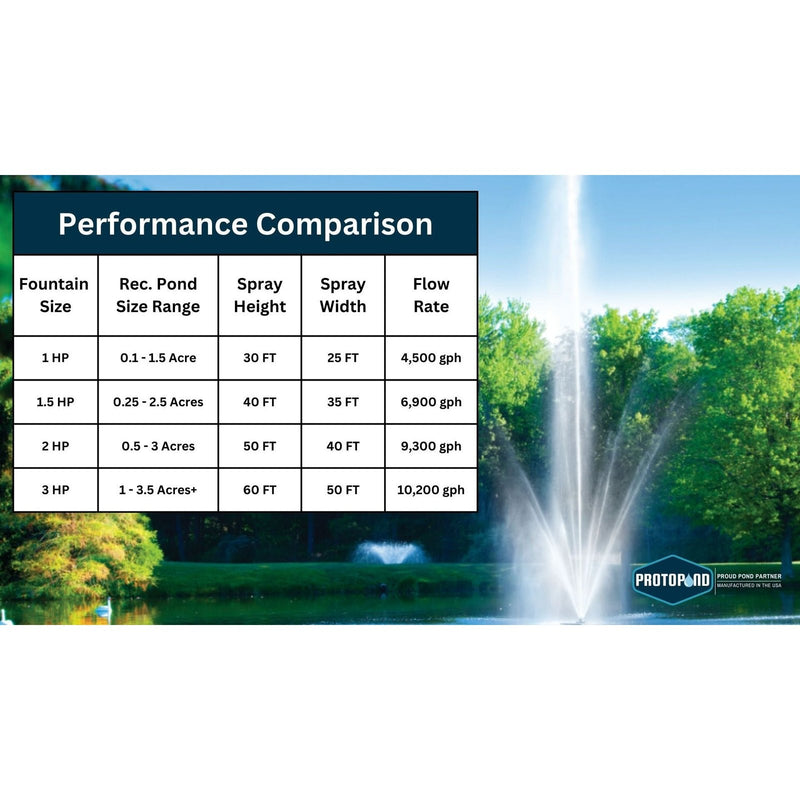

Size Guide

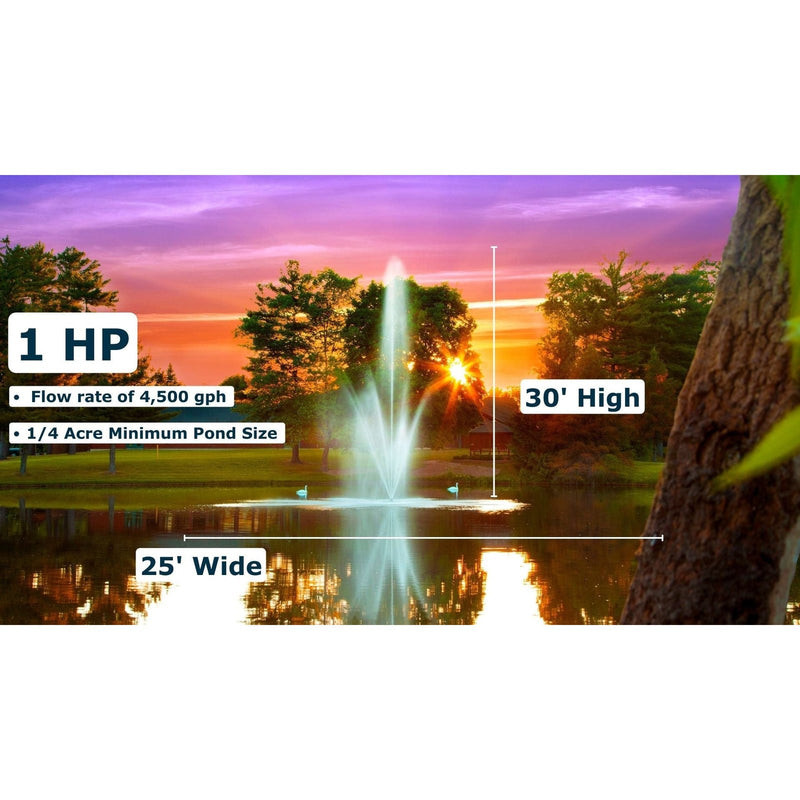

1 HP
| Spray Size | 30 ft High x 25 ft Wide |
| Recommended Pond Size | 0.5 - 1 Acre |
| Minimum Water Depth | 44 Inches |
| Flow Rate | 4,500 gal/hr |
| Voltage | 115V or 230V |

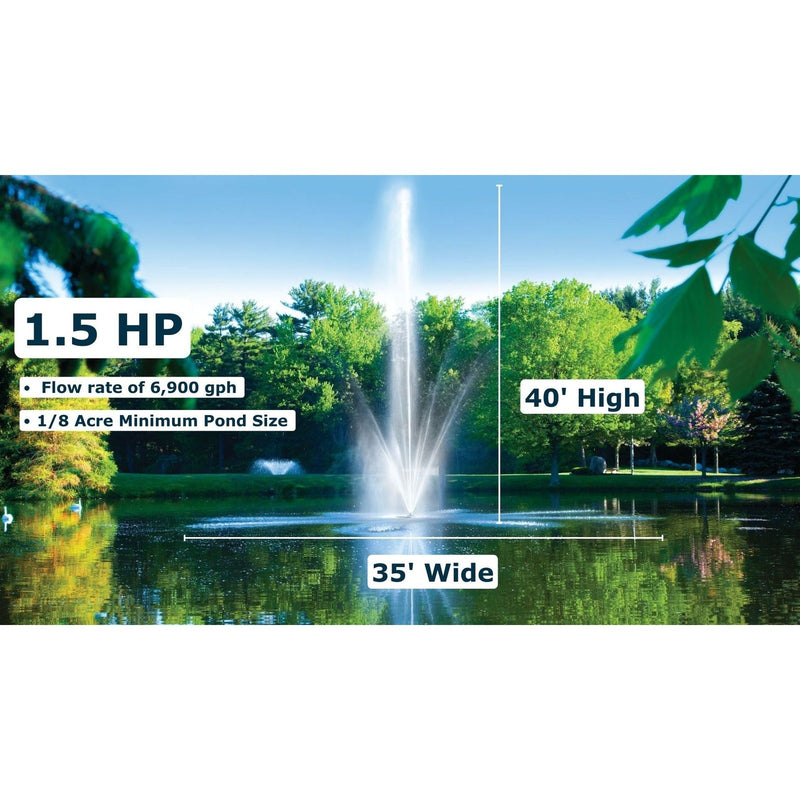

1.5 HP
| Spray Size | 40 ft High x 35 ft Wide |
| Recommended Pond Size | 1 Acre - 2 Acres |
| Minimum Water Depth | 50 Inches |
| Flow Rate | 6,900 gal/hr |
| Voltage | 230V only |

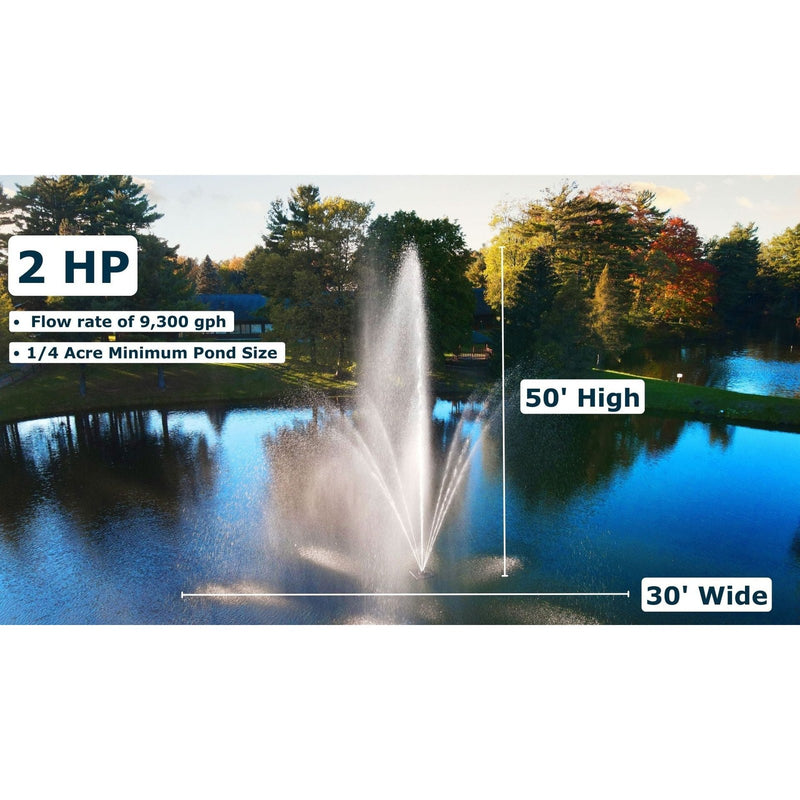

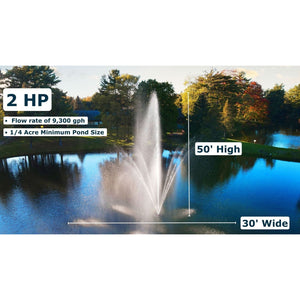

2 HP
| Spray Size | 50 ft High x 40 ft Wide |
| Recommended Pond Size | 1 Acre - 2 Acres |
| Minimum Water Depth | 56 Inches |
| Flow Rate | 9,300 gal/hr |
| Voltage | 230V only |

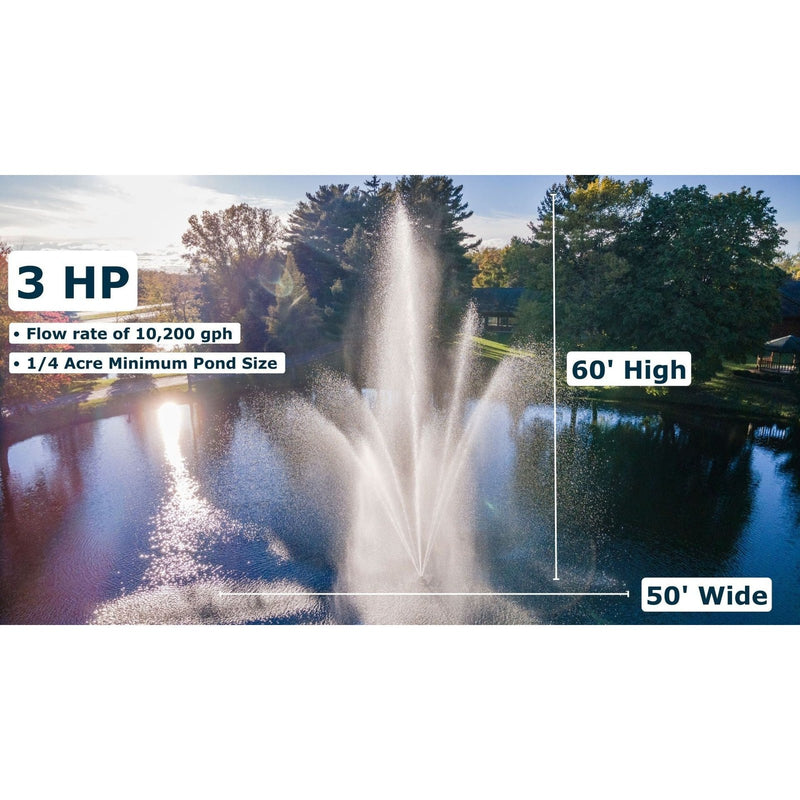

3 HP
| Spray Size | 60 ft High x 50 ft Wide |
| Recommended Pond Size | 1 Acre and Above |
| Minimum Water Depth | 60 Inches |
| Flow Rate | 10,200 gal/hr |
| Voltage | 230V only |
Quick Facts
- Floating pond & lake fountain.
- All-Season Operation.

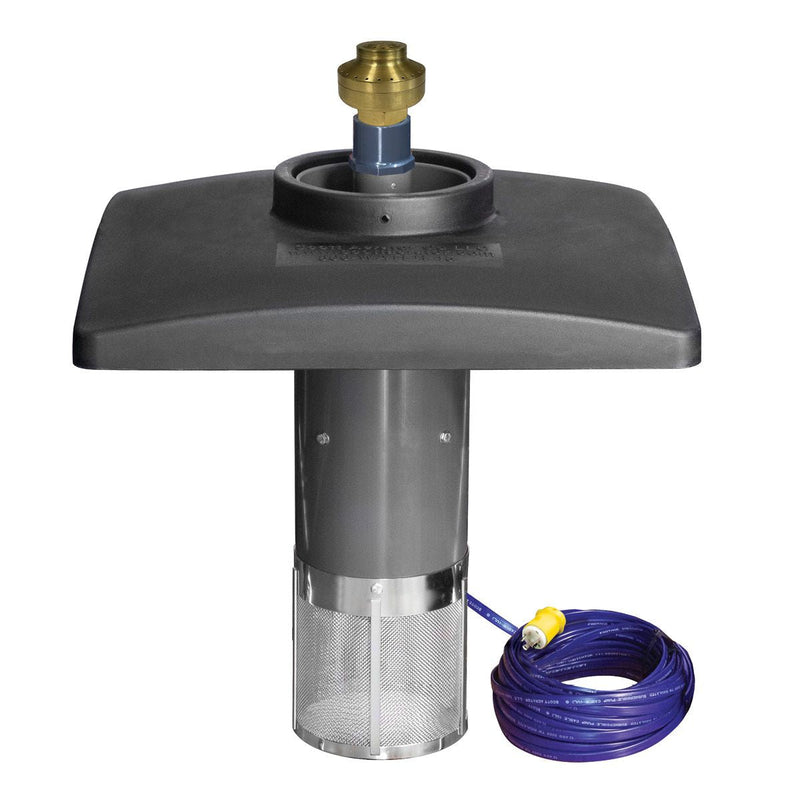

- Includes fountain pump, Atriarch nozzle, float, bottom screen and power cord.
- Optional LED lights and timers can be purchased with initial order or added to fountain later.
- Available in 1 HP, 1.5 HP, 2 HP and 3 HP.
- Oil-free, water-cooled motor.
- Approved for use in salt water.
- 5 Year Warranty
- GFCI required. Please disconnect the power source when swimmers are present.
- ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.
Important Manufacturer Note from Scott Aerator:
Please note that 115V units are only compatible with power cords up to 100ft in length from the breaker to the fountain. If you are needing a longer power cord length, please go up to our 230V units to avoid amperage drops.
L6-20 plug is required by the 230V and a 20 amp double pole breaker.
